help me for 2 receiver with one lnb

[eng_lhr]

plz ye bato ke SADA C band single pin lnb ke sath 2 receiver chakk sakty hain ya nahee
or signle pin ku band lnb ke sath 2 receiver kist rta chak sakty hain

[dodi2000]

plz ye bato ke SADA C band single pin lnb ke sath 2 receiver chakk sakty hain ya nahee
or signle pin ku band lnb ke sath 2 receiver kist rta chak sakty hain

bhai agar app C Band Single Solution Lnb use karain gay to app 2 say ziadia receivers use kar sakty hain uss k liya app ko splitter use karna pary gaa

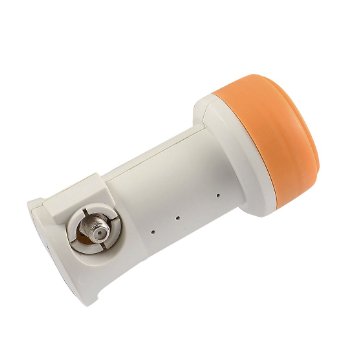

[attachment=1]splitter.jpg[/attachment]

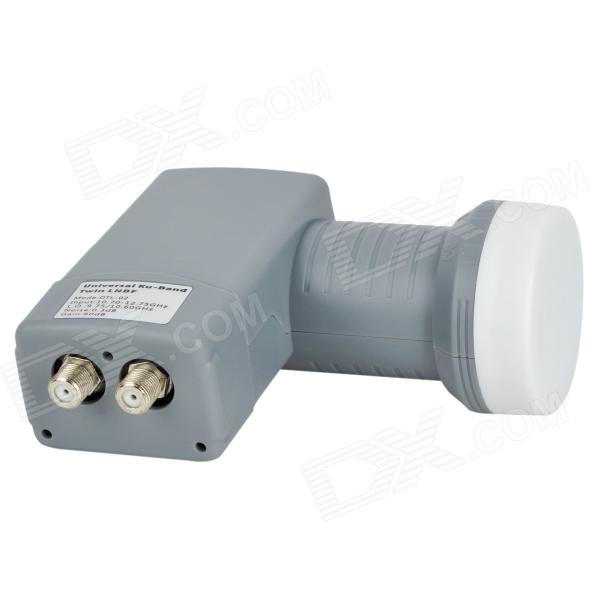

orr ku band k liya app ko 2 output or 4 out put lnb use karna ho gi

[attachment=0]ku.jpg[/attachment]

[eng_lhr]

bahi sada lnb pe kewn nahe lag sakty 2 receiver
mera swal ye hai
or ku band ke signle pin wali pe 2receiver kewn nahe chal sakty

[eng_lhr]


bahi sada lnb pe kewn nahe lag sakty 2 receiver
mera swal ye hai
or ku band ke signle pin wali pe 2receiver kewn nahe chal sakty

241-3 copy.gif

[eng_lhr]

yahn koi expert hai ke nahe

[crazyindianstranger]

Bro, actually a universal single output KU band LNB has 4 LNB's inside, which are selected by the receiver commands.
It has :
1. Vertical Polarity - Low Band
2. Vertical Polarity - High Band
3. Horizontal Polarity - Low Band
4. Horizontal Polarity - High Band
All these Bands & polarities are switched inside the LNB by the 22Khz & 13V/18V signals from the receiver.
Only one Band or Polarity is active at a time, so if we connect two or more receivers by using power dividers only the channels available over one band or polarity are active at all the receivers.
Thats why its recommended to use Twin or Quad output LNB's for multiple rooms or boxes for independent channel selection, though its technically possible to connect two or more boxes with a Universal LNB by using power dividers.

A standard C band or extended C band LNB works only in one polarity i.e. Vertical or Horizontal. Therefore there isn't any issue of independent channel selection over these LNB's. U can connect as many boxes as u want by using power dividers.

[eng_lhr]

crazyindianstranger

thank you bro you replay is 100% correct and satisfactory . for Ku band
and my 2nd qush is for standard C band
most people ask ofr SINGLE Solution ( one cable Solution) LNB or use STANDARD C band twin pin

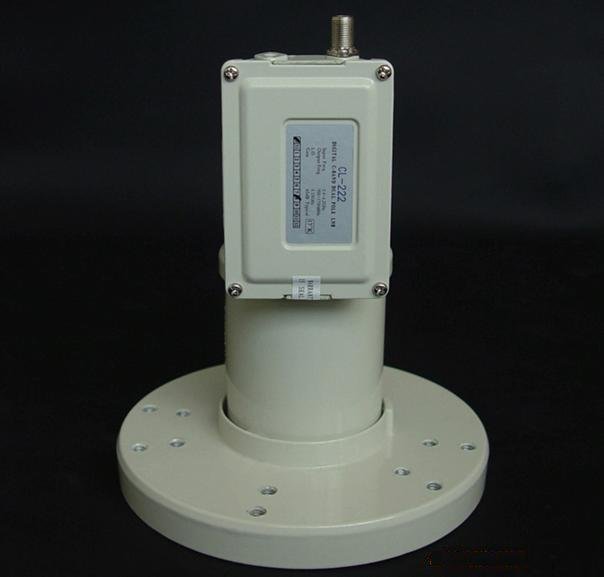

you are asking that we can use STANDARD C band lnb i manshn in the pic witch price about 300 rs to 400
single pin cab be use for two receiver with the help of power pass splatter
is thete is no issue of V/H oin different receivers

standard lnb prive about 300 rs

[arslantahir1]

brother i have a single PIN C band LNB how can i know that it is standard or Single Solution LNB, please help in this regards

[kalpikos]

Hi

Why you don't use a twin lnb?

[eng_lhr]

why single pin can be use for 2 receivers
