Anyone help

[Noumanqasim]

Salam
I want to connect two 4 pin dieseq switches combine with one receiver. 8 pin dieseq is not available in my area.
Anyone suggest best and easy method. With thanx

[dodi2000]

Salam
I want to connect two 4 pin dieseq switches combine with one receiver. 8 pin dieseq is not available in my area.
Anyone suggest best and easy method. With thanx

Brother try this switch
0/12V or 0/5V VOLTAGE CONTROLLED 2-WAY Switch
2 X 1 Multi-Switch

Power passing, 0/5v OR 0/12V switch
Use it to connect 2 separate LNBs (or 2 dishes) that lead into one receiver unit.
Can be used with most MPEG FTA DVB receivers with 0/12V output.
FREQUENCY INSERTION: 900-2150mhz
LOSS (dB): 3
ISOLATION (dB): 20
RETURN LOSS (dB): 10
OPERATION VOLTAGE: 12VDC

Requires optional 5V or 12V power supply (usually available and built-in on some satellite receivers). Switch must be connected to receiver on the Rx side (with voltage 13/18V from receiver) for the switch to work. Relay inside.

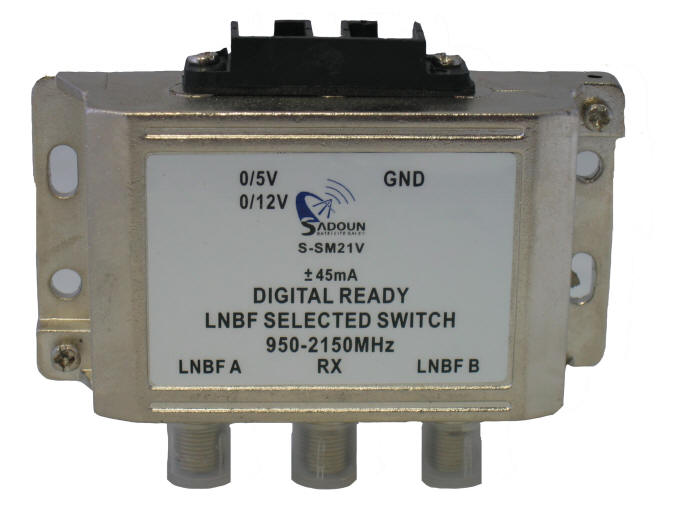

[attachment=0]S-SM212.jpg[/attachment]

[Noumanqasim]

Did u mean this

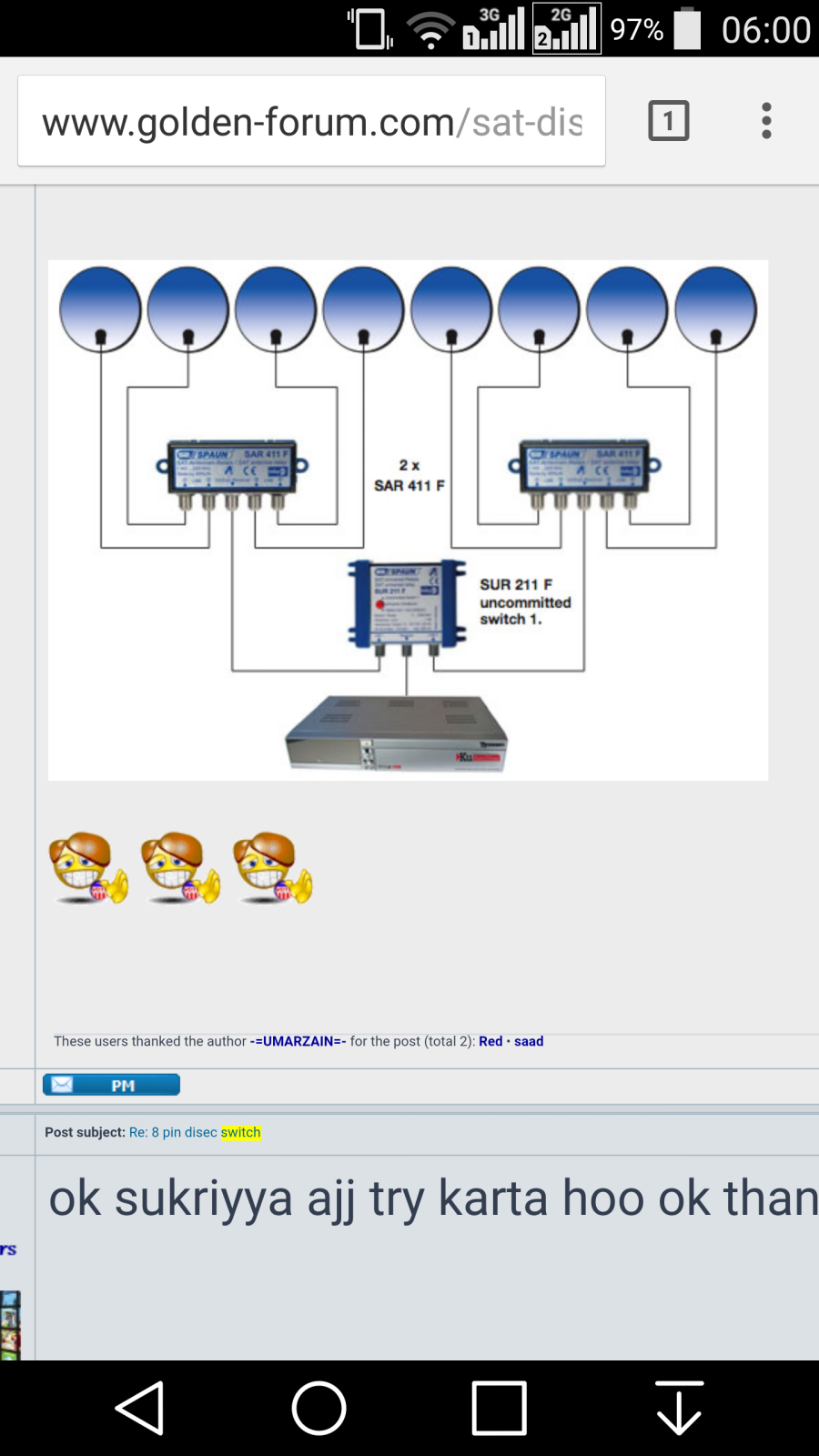

[attachment=0]2rxdx7m.png[/attachment]

edit by dodi2000

[dodi2000]

g bhai mera matlab ye he thaa
