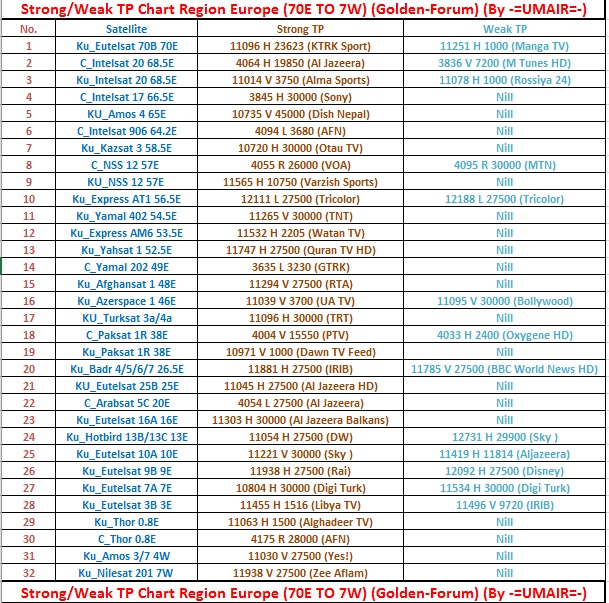

Strong/Weak TP Chart From 138.5E TO 7W

[Umair Malik]

Region Asia

Region Europe

[kashif s]

nice UMAIR brother

[Aijaz Ali]

Useful info thax

[saad]

good sahre

[chazer]

This is nice effort by Mr Umair and must be appreciated but some tps on my side have different story.
Here they are
Measat 91E 12563/H/32000 (61%), 12523/H/30000 (63%).
G-SAT 93E 11470/V/29500 (59%), 11630/H/32000 (63%).
NSS6 95E 12534/V/43200 (63%), 12595/H/43200 (61%).
Asia 105E 3960/H/27500 (61%), 3689/H/15000 (62%).
These all three LNBs shares same dish and NSS6+G-SAT are on same LNB. Hyper 2000.

[virk]

well done umair bhai

[Umair Malik]

This is nice effort by Mr Umair and must be appreciated but some tps on my side have different story.
Here they are
Measat 91E 12563/H/32000 (61%), 12523/H/30000 (63%).
G-SAT 93E 11470/V/29500 (59%), 11630/H/32000 (63%).
NSS6 95E 12534/V/43200 (63%), 12595/H/43200 (61%).
Asia 105E 3960/H/27500 (61%), 3689/H/15000 (62%).
These all three LNBs shares same dish and NSS6+G-SAT are on same LNB. Hyper 2000.

I did all this on the basis of tiger t800 hd tuner. Starsat 2000 hyper I am using it myself its tuner is very awkward/strange

I can give u a example

I get 3960 H 27500 tp signal around 72 on tiger t800 hd while on starsat 2000 hyper it is around 64

3689 H 15000 tp signal is around 65 on tiger t800 hd but it gives 63 Signals with me on starsat 2000 hyper

Btw u can get 3960 tp on 4ft but u wont get 3689 on 4ft dish

[chazer]

This is nice effort by Mr Umair and must be appreciated but some tps on my side have different story.
Here they are
Measat 91E 12563/H/32000 (61%), 12523/H/30000 (63%).
G-SAT 93E 11470/V/29500 (59%), 11630/H/32000 (63%).
NSS6 95E 12534/V/43200 (63%), 12595/H/43200 (61%).
Asia 105E 3960/H/27500 (61%), 3689/H/15000 (62%).
These all three LNBs shares same dish and NSS6+G-SAT are on same LNB. Hyper 2000.

I did all this on the basis of tiger t800 hd tuner. Starsat 2000 hyper I am using it myself its tuner is very awkward/strange

I can give u a example

I get 3960 H 27500 tp signal around 72 on tiger t800 hd while on starsat 2000 hyper it is around 64

3689 H 15000 tp signal is around 65 on tiger t800 hd but it gives 63 Signals with me on starsat 2000 hyper

Btw u can get 3960 tp on 4ft but u wont get 3689 on 4ft dish

Agreed.

[samidrosh123]

nice info bro keep it up

[OmMeE]

Very nice effort! Nicely done!
