Vu+ Solo Power supply information

Post by Muhammad Qaiser »

Note: This power supply must give the folowing voltages, even if it is not connected to the motherboard.
P801/CN2 Pin,
1: Gnd
2: 3.3v
3: 3.3v
4:Gnd
5: 5v
6:Gnd
7: 12v

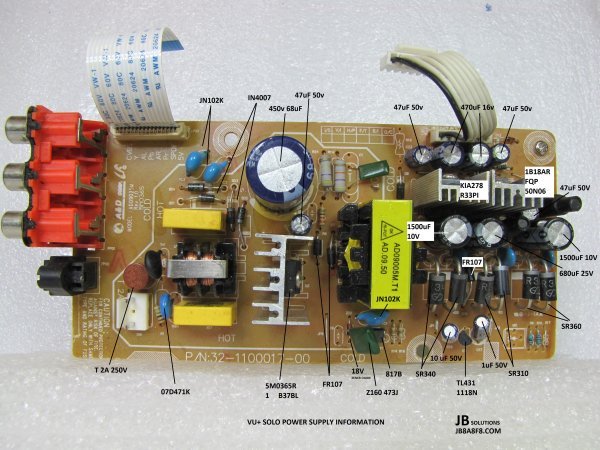

Parts side with parts info
Print side
