Solo2 securitychip socket modification

[Muhammad Qaiser]

f you have some issues with your Solo2 security chip and you need to replace it, then it's better and handy to create a socket version for it so that you are be able to use a security chip module version as the VuJ.
*** However, due the extra fpga chip on the board you still need to use the solo2 clone software. ***
It's only useful to use the VuJ chip or module version to bring your box back to life when the previous chip failed.

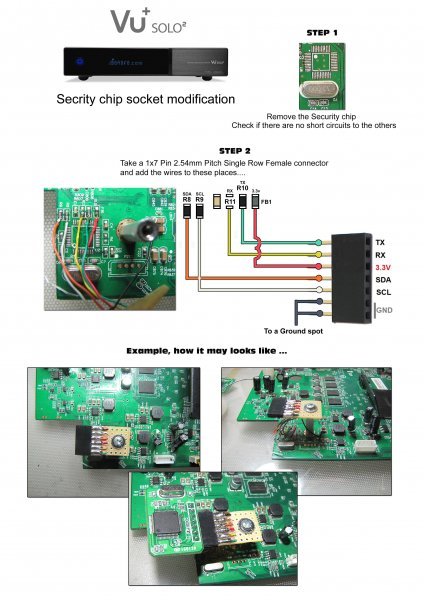

In any case, I have here a picture how it can be done, enjoy.

M. Qaiser

[rajaraju]

Dear copy paste say kaam nhi chalata thoda detail say bataye
