Product Model:TBS6522
Weight:210.00g
Reward Points:150
In Stock
US$149.99

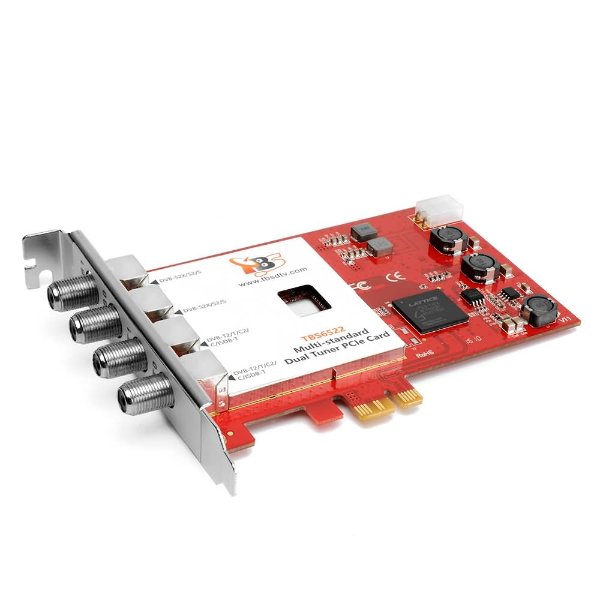

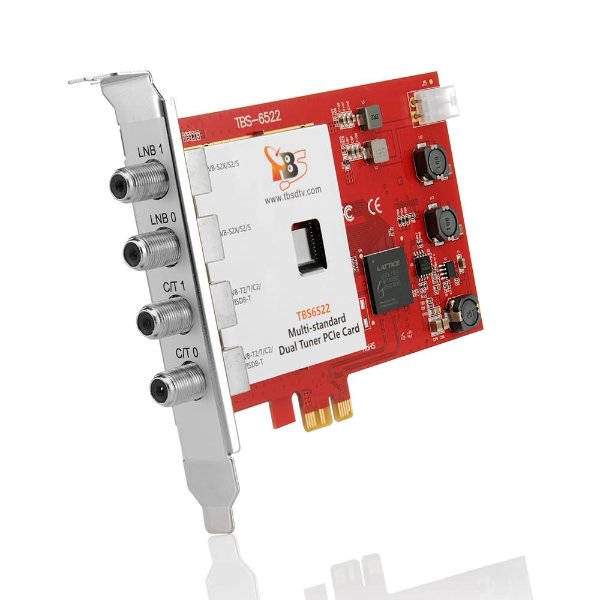

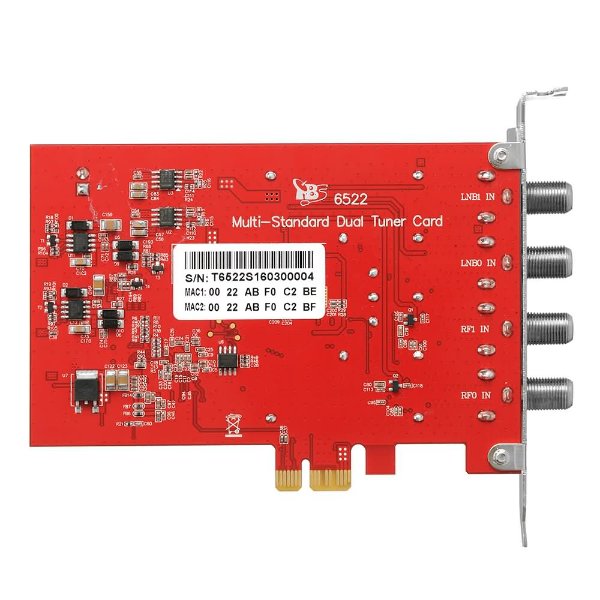

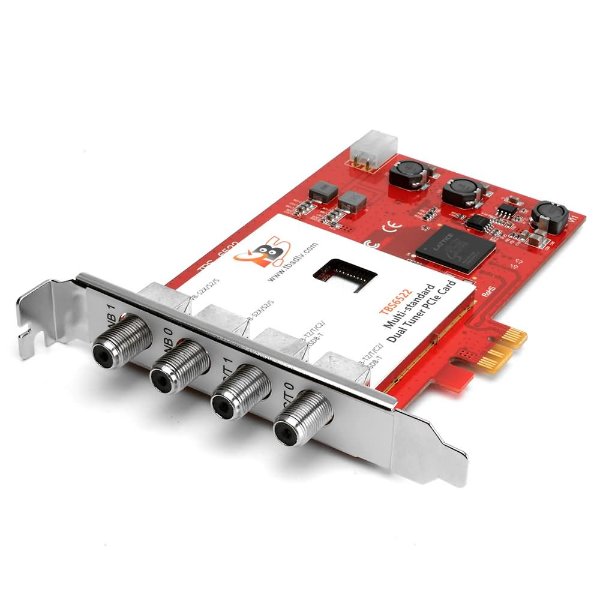

TBS6522 is a Dual PCI express TV tuner card that supports multiple digital TV standards including DVB-S2X/S2/S/T2/T/C2/C/ISDB-T, four RF IN is independent with each other, with this multi-standard TV tuner card, a switchover between different digital TV signals is much easier, you just need to plug another signal cable instead of taking out the card from your server. With two tuners, the TBS6522 enables you to watch TV channel from one transponder/satellite while recording another channel from another transponder/ satellite at the same time
Main Features:
Support DVB-S/S2/S2X , DVB-T2/T, DVB-C2/C (ITU-T J.83 Annex A/B/C), ISDB-T
Fast scanning functionality for all media
Support VCM, CCM, QPSK, 8PSK, 16APSK, 32APSK
Up to 173M/bps(TS Data Rate)
Dual flexible TS interfaces
Applications:
Data receiving
IPTV streaming
Media monitoring
Digital content distribution
Specifications:
ISDB-T COFDM demodulator and FEC decoding
Support 3 layers decoding
TMCC decoding
Support differential demodulation
AC1 and AC2 decoding
DVB-T2 and T2-Lite Receiving channel: VHF band, UHF band
Bandwidth: 1.7, 5, 6, 7, 8MHz
FEC: QPSK, 16QAM, 64QAM,256QAM
FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-C2 COFDM demodulator(16_QAM to 4096_QAM)
FEC(LDPC/BCH) decoder
Bandwidth: 6MHz, 7MHz, 8MHz
DVB-C and ITU-T J.83 Annex B QAM demodulator
FEC decoder
1 to 7.2MSymbol/s
DVB-S/S2/S2X symbol rates: 1-45Msps
FEC:
DVB-S/S2
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X
QPSK: 13/45, 9/20, 11/20
2_4_2_APSK: 100/180, 104/180
8PSK: 23/36, 25/36, 13/18
8_8_APSK: 90/180, 96/180, 100/180, 18/30, 20/30
16APSK: 26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 140/180, 154/180
4_12_16rb_APSK: 2/3
4_8_4_16_APSK: 128/180, 132/180, 140/180
Power consumption
Input/ Power: 12V/6~18W
temperature 0°~ 60°
Other information:
System Requirements Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Digital TV signal (ISDB-T/DVB-T2/C2/S2X/S2/T/C/S)
Dimension:
TV tuner card size 130mm*92mm
Net weight 115g

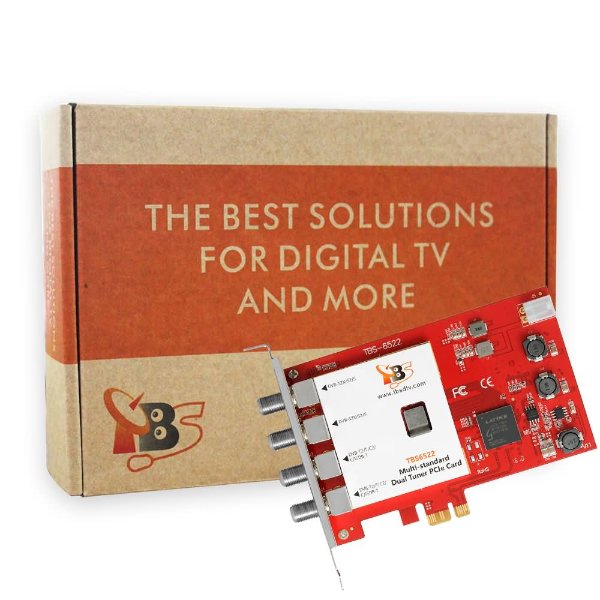

Gift Box Size 200*130*30mm
Weight 210g
Package Contents
1 x TBS6522
1 x DC cable
2 x F-IEC adapter
.
