though the issue is being discussed thru whatsapp ,due to lake of interest in my previous rubbish(
)hobby ...want to mention all important discussion over here so any one could get benefitted

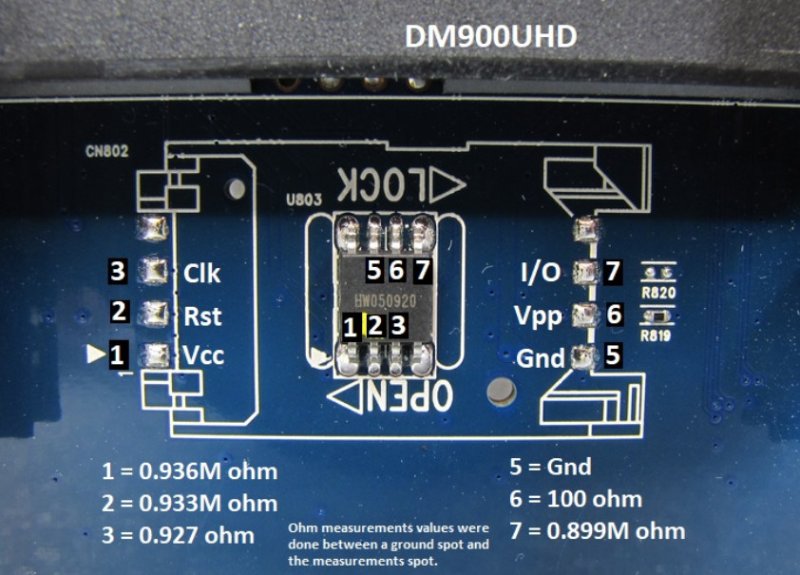

Ye ap ke board ki pics he . orgininal paste /pad jo hota he wo sky blue color ka he . me ne apni sindhi mechanic ko peche lagaya hua he wo dhond kr hi bheje ga . aur me ne Pentium 4 fan 2 nikal liye . nishan bhi laga liye hen un ki cutting krwaon ga .madam kehti tum board nikal kr muje Germany bhej do me dekhti hon agar me repair kr saki . ye rolay wali baat he . us ki skill to he lekin muje weham hi rehe ga kehin pehle se bhi ziada khota khoo me na phenk de . is lye me bas chup kar gya hon.
[11:25 AM, 5/27/2022] Raza Ali: Aslam au alakum .. Main ne temp ko control kr lia he us ki root cause tak me pohnch gya hon . Jo kuch me ne find out kia he na johnny ne accept krna he na madam ne . wese me ne us ne abhi baat nhi ki is pr .. khair wo wo ek lambi detail he me us par baad me baat kron ga
[11:27 AM, 5/27/2022] Raza Ali: Box ab red lite pr chala gya he . agar me temp control nhi krta to box wese on hota he kuch der baad temp hi hota he aur box stuck ho jata he . lekin agar me temp control kr leta hon to box red lite pr chala jata he
[11:27 AM, 5/27/2022] Raza Ali: ============ PuTTY log 2022.05.27 11:21:17 ============
CPU 01
Dreambox DM9 00
AVS init...
AVS init OK
AVS load:select_image: addr_offset: 00051000 part_offset: 00000000 bootStatus: 2a002b00
AVS load_code offset =00051000
LOADED
AVS: overtemp mon ON
single board
select_image: addr_offset: 00055000 part_offset: 00000000 bootStatus: 3d2b2500
MEMSYS-STD
SHMOO 02010000 BLD:11138M HW:hpf0_b1p6 V:2.1.0.0
MCB: FLEX
AVS start:status=000000ff
STB: Current voltage=0000038d(909)
temperature=00008e9f(36511)
PV=0000034b(843)
MV=0000038c(908)
AVS FW rev=30333278 [0.3.2.x]
OK
DDR0: !@ ffe0e780 <= ffe0df10 MEMSYS-0 @ f1100000
MEMSYS ERROR: 00000001
eMEMC:
00000000
ePHY: 00000000
eSHMOO: 10000000 00000082 00000000
CPU 01
Dreambox DM9 00
AVS init...
AVS init OK
AVS …
[11:28 AM, 5/27/2022] Raza Ali: Ye putty log he bottom line ko read kren
[11:28 AM, 5/27/2022] Raza Ali: FATAL ERROR: Boot 2nd image failed
[11:28 AM, 5/27/2022] Raza Ali: Bootloader box ko identify krta he lekin image load nhi hota
[11:30 AM, 5/27/2022] Raza Ali: Ap ke pass kisi bhi tarah ki red light fix ki information he muj se detail me chahye 10 din baad share kren lekin share zror kren jab ap ke pass time ho . ho sakta he muje koi idea mil jaye . warna cyprus board se to on me kar lon ga lekin wo dhaka start formula hota he har bar to us start nhi kr sakta
Rana G! meray pass jo red light kay concerning info thee ...saari share ker di hay ....it may possible yeh post parh ker kissi ka zameer jaag joy aur apna experience share karay
