Suggest my buying reciver 4k best konsa hee helpp

Previous topicNext topic
User avatar
jamalnasir4242
Senior Registered Member
Senior Registered Member
Posts: 681
Joined: 01 Apr 2014, 10:44 pm
Has thanked: 5 times
Been thanked: 13 times

Suggest my buying reciver 4k best konsa hee helpp



Post by jamalnasir4242 »

Me reciver lena cahta hoo konsa best hee 4k me all power u auto hoo mgcamd bi hoo sun hd aur d2h chalana hee plzzz subse best reciver battio

Thanksssssss......... in advance
TIGER T800 HD:
SPARK:7111:
STARTRACK:2020:
SUPERMAX 3000:3G WIFI:
ashiqnoorm
Gold Contributor
Gold Contributor
Posts: 1090
Joined: 19 Jun 2013, 3:19 pm
Location: █║▌│█│Teh Lachi Distt Kohat║█║▌│█
Has thanked: 20 times
Been thanked: 39 times

Suggest my buying reciver 4k best konsa hee helpp



Post by ashiqnoorm »

Mediastar x2 ms-diamond 4k
User avatar
jamalnasir4242
Senior Registered Member
Senior Registered Member
Posts: 681
Joined: 01 Apr 2014, 10:44 pm
Has thanked: 5 times
Been thanked: 13 times

Suggest my buying reciver 4k best konsa hee helpp



Post by jamalnasir4242 »

Yes kaha se milega yeh
TIGER T800 HD:
SPARK:7111:
STARTRACK:2020:
SUPERMAX 3000:3G WIFI:
talibb
Gold Contributor
Gold Contributor
Posts: 1024
Joined: 03 Jul 2013, 8:09 pm
Has thanked: 5 times
Been thanked: 82 times

Suggest my buying reciver 4k best konsa hee helpp



Post by talibb »

in my openion there is no box in pakistan market copmlete satisfied to buy
full 2160/3840 uhd
ddr4-ram
good processer above1.5mhz in better concerned type
better internal memory
tuner should be dvbs+dvbs2 X tuner/8pks/16/32+multistream+hevc265+hevc246mpeg
auto biss+auto powervu
affordable price
at the moment no box in my views
so wait and see....
ali03000345
Senior Registered Member
Senior Registered Member
Posts: 913
Joined: 15 Dec 2017, 9:21 am
Has thanked: 57 times
Been thanked: 98 times

Suggest my buying reciver 4k best konsa hee helpp



Post by ali03000345 »

Mediastar
User avatar
Athart
Vip
Vip
Posts: 3722
Joined: 21 Mar 2017, 1:00 pm
Has thanked: 991 times
Been thanked: 2328 times

Suggest my buying reciver 4k best konsa hee helpp



Post by Athart »

EuroBird, HotBird, EuTel 16A, Badr, PakSat, TurkSat, Turkmen/YahSat-1
DM520, SRT2020+, T800, Sony 40W660E, Sony 24EX430
User avatar
Athart
Vip
Vip
Posts: 3722
Joined: 21 Mar 2017, 1:00 pm
Has thanked: 991 times
Been thanked: 2328 times

Suggest my buying reciver 4k best konsa hee helpp



Post by Athart »

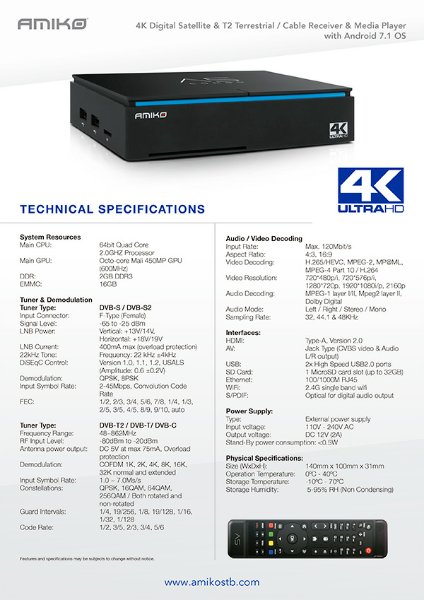

General technical details:
Main CPU: 64bit Quad Core 2.0GHZ - AML S-905D
Graphics Card: Penta Core Mali GPU 450MP (600MHz)
RAM Memory: 2GB DDR3
Flash EMMC: 16GB


Tuners and Demodulation
Satellite Tuner Type: DVB-S / DVB S2
Input connector: F-Type (Female)
Signal Level: -65 to -25 dBm
LNB Power: Vertical: + 13V / 14V, Horizontal: + 18V / 19V
LNB Current: 400mA max (overload protection)
Tom DiodeqC
Control: Version 1.0, 1.1, 1.2, USALS (Amplitude: 0.6 ± 0.2V)
Demodulation: QPSK, 8PSK Input Symbol Rate: 2-45Mbps, Convection Code Rate FEC: 1/2, 2/3, 3/4, 5/6, 7/8, 1/4, 1/3, 2/5, 3/5, 4/5, 8/9, 9/10, auto


Type of Tuner Cable: DVB-T2 / DVB-T / DVB-C
Frequency Range: 48 ~ 862MHz
RF Input Level: -80dBm to -20dBm
Antenna Output Power: DC 5V at max. 75mA, overload protection
Demodulation: COFDM 1K, 2K, 4K, 8K, 16K, 32K normal and extended
Symbol Rate e Input: 1.0 ~ 7.0Ms / s
Constellations: QPSK, 16QAM, 64QAM, 256QAM / Both rotated and not rotated
Guard intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32 , 1/128
Code rate: 1/2, 3/5, 2/3, 3/4, 5/6

Audio / video decoding
Input rate: max. 120 Mbit / s
ratio: 4: 3, 16: 9
video decoding: H.265 / HEVC, MPEG-2 MP @ ML MPEG-4 part 10 / H.264
Video Resolution: 720 * 480p / i, 720 * 576p / i, 1280 * 720p, 1920 * 1080i / p, 2160p
Audio Decoding: MPEG-1 Layer I / II, Layer Mpeg2 II, Dolby Digital
Audio Mode: Left / Right / Stereo / Mono
Sampling Rate: 32, 44.1 and 48kHz

Interfaces:
HDMI: A-type, version 2.0
AV: Jack Type (CVBS video and audio L / R output)
USB: 2 high-speed USB 2.0 ports
SD card: 1 MicroSD card slot up to 32GB)
Ethernet: 100 / 1000M RJ45
Card Reader: Conax
WiFi: 2.4G single-band Wi-Fi
S / PDIF: optical for digital audio output

Power Source:
Type: power supply External
Input Voltage: 110V - 240V
Output Voltage AC: DC 12V (2A)
Standby Power Consumption: <0.5W

Physical Specifications:
Size (WxDxH): 140mm x 100mm x 31mm
Operating Temperature: 0ºC - 40ºC
Storage Temperature : -1 0 ° C - 70 ° C
Storage Humidity: 5-95% RH (non - condensing)

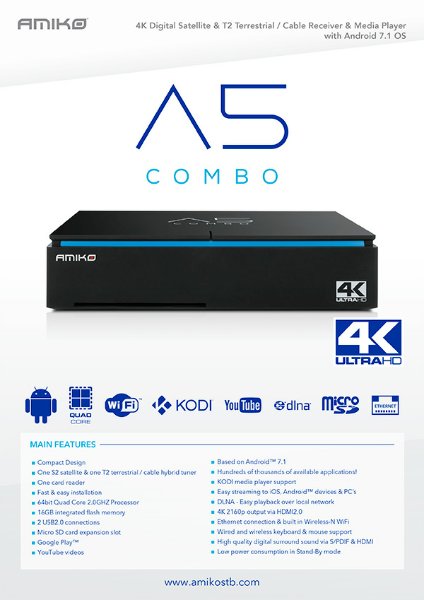

Features and application:
- Android 7.1.2 / dualboot Enigma2
- Enigma2 OpenATV 6.2 (SD)
- DTV LinkDroid
- Kodi 17.6
- YouTube 4K
- 4K Netflix
- IPTV STB UEM + Stalker
- Oscam UEM PVU
EuroBird, HotBird, EuTel 16A, Badr, PakSat, TurkSat, Turkmen/YahSat-1
DM520, SRT2020+, T800, Sony 40W660E, Sony 24EX430
talibb
Gold Contributor
Gold Contributor
Posts: 1024
Joined: 03 Jul 2013, 8:09 pm
Has thanked: 5 times
Been thanked: 82 times

Suggest my buying reciver 4k best konsa hee helpp



Post by talibb »

The main is tuner is incomplete
dvbs2 X tuner multistream
0nly dvbs2 8pks no 16 and nothing 32
so in my view incmoplete box
